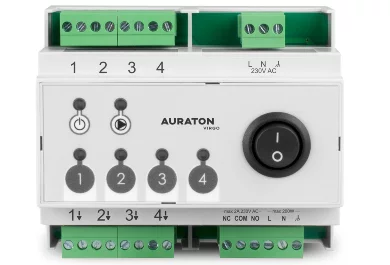

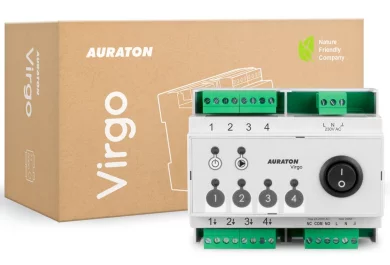

AURATON 4D PRO

A strip to control floor heating actuators, intended for installation in electrical cabinets. AURATON 4D PRO works with cable temperature controllers. It enables simultaneous control of the operation of the central heating pump and of the heating device

Properties

  • 4 heating zones.
    Each zone can be connected to up to 3 AURATON TE 230
    or AURATON TE 230PRO actuators.
  • Easy to use and install on a DIN rail.
  • Control of a central heating circulation pump.
  • Control of a central heating boiler via a relay with potential-free contacts.
  • Intended for cooperation with cable temperature controllers.
  • In order to facilitate installation, the terminals are fitted with extendable clamps. Before cable connections are made, they can be disconnected from the controllers.

Gallery

Technical data

AURATON 4D PRO:

Power supply: 230VAC 50Hz
Number of controlled heating zones: 4
Maximum number that can be
connected:		 4 thermostats
Load capacity of the 230V head control
outputs:		 30 W per zone
(up to 3 AURATON actuators)
Load capacity of the 230V CH pump
output:		 200 W
Load capacity of transmitter: 230 VAC, 2A
Indication of operation status: LED’s
Stopień ochrony IP 20
