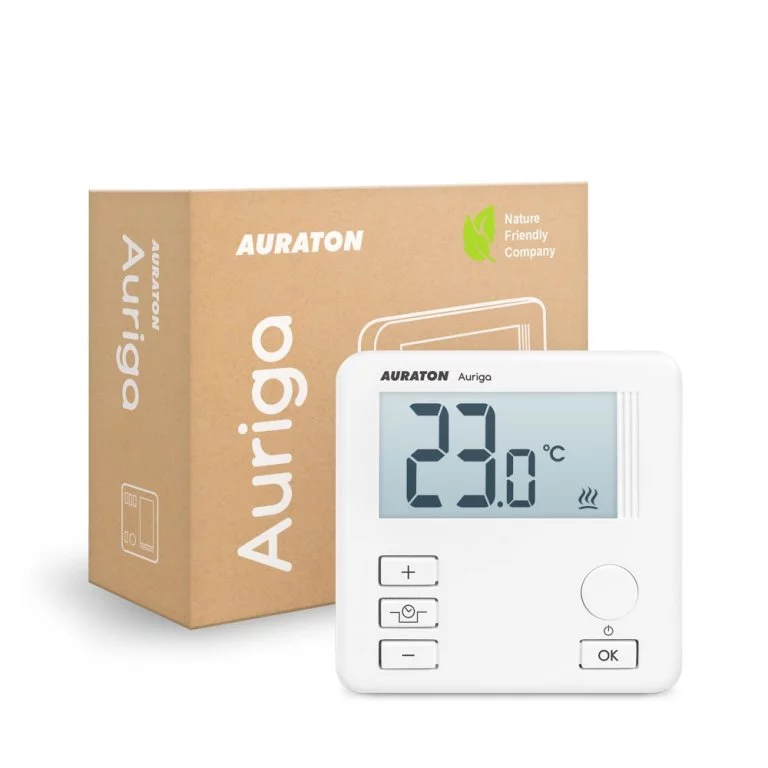

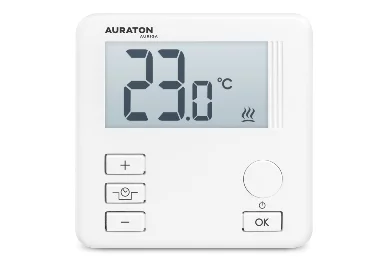

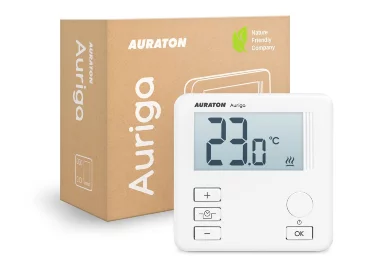

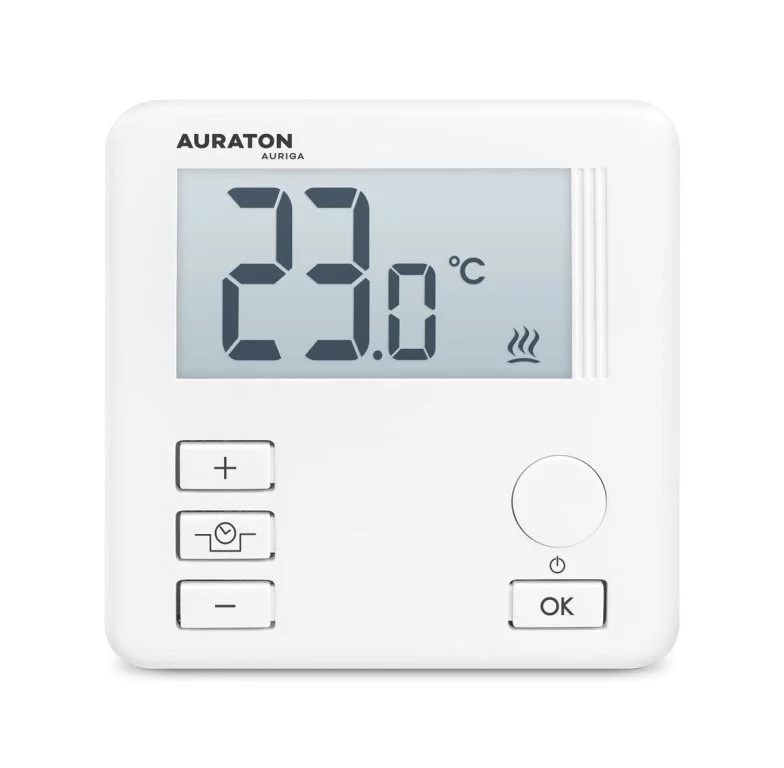

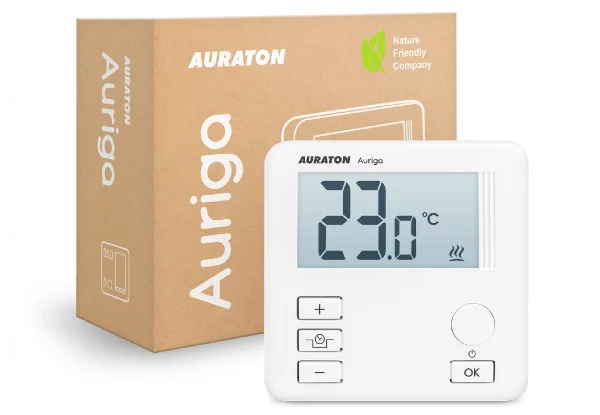

AURATON Auriga
Daily wired thermostat
The AURATON Auriga daily, wired thermostat (successor to the AURATON 3003) is a device that ensures precise temperature settings with an accuracy of up to 0.2°C, operating on a 24-hour cycle. The Auriga controller from AURATON features an economical function that lowers the temperature by 3°C for a period of 6 hours, cycling daily at the same time.
Are you interested in this product?
Where to buy
Economy Mode – cyclical reduction of temperature by 3°C for 6 hours, every day at the same time
The FrostGuard function prevents the room from freezing
LCD display adapted to work in dimly lit rooms
PWM working mode
New features of the AURATON Auriga controller
The new version of the AURATON Auriga controller has been enhanced with features that significantly improve user comfort and streamline the installer’s work. Users can now enable or disable the relay delay function, allowing the device to be better adapted to modern heating systems – without unnecessary pauses, with immediate response to temperature changes, and without the risk of misinterpreting the delay as a malfunction. Additionally, a temperature calibration function (offset ±3°C) has been introduced, enabling precise adjustment of the controller’s readings to a trusted reference thermometer. This solution eliminates measurement discrepancies between devices, ensures consistent operation in multi-zone systems, and increases user confidence in both the temperature readings and the overall heating system.
Thermostat with PWM
The advanced PWM operating mode enables the heating device to be cycled on and off, minimizing temperature fluctuations. Thanks to this PWM algorithm, the controller maintains thermal comfort in the room by anticipating the needs of the heating system while also reducing energy consumption.
Illuminated Room Thermostat
Equipped with an LCD display, the AURATON Auriga controller ensures readability even in poorly lit rooms. With its bright and clear data display, users can easily monitor the current temperature settings and adjust them to their preferences, regardless of the room's lighting conditions. Additionally, the 'FrostGuard' function effectively prevents the room from freezing, providing extra safety.
Technical data
| Power supply | 2xAAA (2x1.5V), alkaline |
| Operating temperature range | 0° – 45°C |
| Working cycle | daily |
| Working status signalling | LCD display |
| Relay load capacity | max. 250V AC, max. 16A |
| Number of temperature levels | 1 |
| Anti-freeze temperature | 2°C |
| Temperature control range | 5° – 35°C |
| Temperature measuring range | 0° – 35°C |
| Hysteresis | ±0.2°C/±0.4°C/PWM |
| Temperature setting accuracy | 0.2°C |
| Ingress protection | IP 20 |
| Humidity | ≤85% non-condensing |
