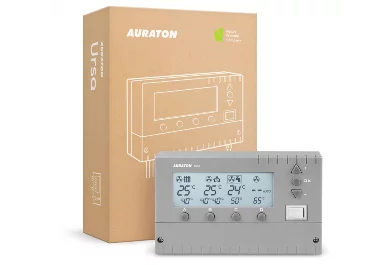

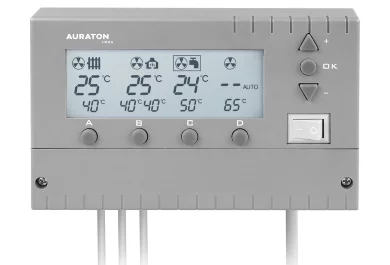

AURATON S14

A multifunctional pump controller intended for work with central heating circulation pumps and domestic hot water pumps. Controllers working with central heating pumps can also work with water-jacket stoves and fine coal and coal boilers with forced air supply.

Properties

  • Multifunctional.
  • Works with water-jacket stoves in central heating systems and with fine coal and coal boilers with forced air supply.
  • A maximum fan power function.
  • An emergency heat evacuation function.
  • A function to enable putting fuel in the furnace.
  • A backlit LCD display.

Gallery

Technical data

Pump controller AURATON S14:

Temperature control range: 10° – 85°C
Temperature measurement range: 0° – 99°C
Hysteresis (on/off difference): 2° – 10°C
Power supply voltage: 230V / 50Hz
Maximum load for output sum: ~6A
Operation status control: LCD display
Blowthrough time and intervals
between blowthroughs:		 0 ÷ 59 sec.
and 1 ÷ 99 min.
